18 Years Factory 5052 H26 Aluminum Coil - Aluminum stranded wire – Wanlutong

Brand Name:wanlutong

Place of Origin:shandong，China (Mainland)

Product name:Aluminum stranded wire

Sectional area: 10-1500mm²

Type:Bare

Application:Overhead

Conductor Material:Aluminum

Conductor Type:Stranded

Insulation Material:BARE

Standard:ASTM/AS/DIN/CSA

Non-standard specifications can be customized

Description:

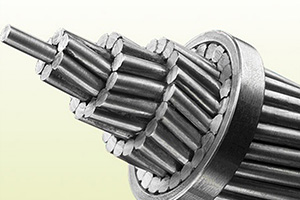

The aluminum strand is a bare conductor.At present, it is widely used in China to use aluminum clad steel stranded wire (LGJ) as the conductor; The steel core mainly ACTS as an increase in strength, and the aluminum strand is mainly used to transmit electricity. Depending on the voltage, the cross-sectional area of the wire is different. For example, the current domestic 500 kv transmission line of wire general lgj-400/35 lead. L is short for aluminum wire, G is short for steel core, and J is short for strand, 400 is aluminum 400 square millimeter, 35 is steel 35 square millimeter.

Advantages:

1.Simple structure;

2. Convenient to erection and maintenance;

3. Low cost for power line;

4. Large transmission capacity;

5. Beneficial to lay in special geographic conditions, such as across rivers and valleys.

6. Excellent conductivity;

7. Enough mechanical strength;

8. Large tensile stress.

9. Pole distance amplification allowed.

Type:
