Quick Details

Type:Brass Wire                              Application:zipper making

Wire Gauge:0.2-50mm                         Grade:H65 Brass Wire

Cu (Min):63.5%                               Alloy Or Not:Is Alloy

Ultimate Strength (≥ MPa):Wanlutong            Model Number:H65

Place of Origin:Qingdao, China (Mainland)         Brand Name:Wanlutong

shape:flat wires

port：Qingdao，China                 Payment:  T/T,L/C

Packaging & Delivery

Packaging Details

40kg/roll, 1600kg/pallet

Delivery Time

within 15 days upon payment receipt

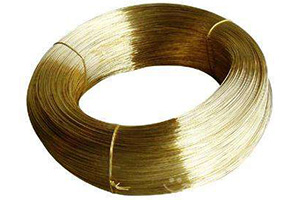

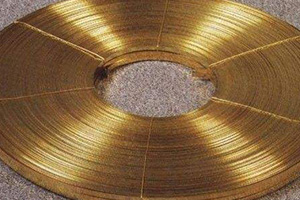

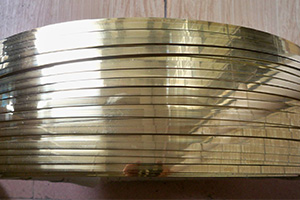

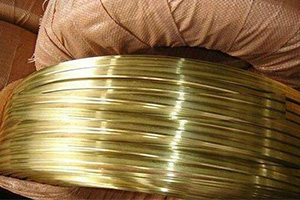

H65 Brass Flat wire with low lead used for zipper making

Small flat wires specification

Thickness:0.7~1.5mm

Width:3.0~6.0mm

Non-standard specifications can be customized

Package:40kg/roll

Products Application:

metal zipper;

copper wires for electric apparatus and hardware.

Through the development of years, the application of promotes fast, we can provide marketable, high quality products according to customer’s demands.

Description:

flat wire, flattened wire, flat wire or ultra-narrow strip, refers to a cross-section of an anisotropic wire with approximately rounded corners, thickness ranging from 0.025mm to 2 mm, width generally less than 5 mm. The ratio of width to thickness ranges from 2:1 to 50:1. Because the flat filament looks like a band, it is sometimes called an ultra-narrow flat band. Compared with common round wire, flat wire has unique advantages in heat dissipation, welding contact area, fatigue resistance, hardness control and so on. The minimum thickness of flat wire is 0.025 mm, the absolute range of thickness tolerance is 3 μ m, the width is minimum 0.4 mm, the width tolerance is minimum ±0.01 mm, and the surface is clean without burr. Brass flat wire has good mechanical properties, good plasticity in hot state, good ductility in cold state, good machinability, easy fiber welding and welding, corrosion resistance, but easy to produce corrosion rupture, hot working temperature of 650 ~ 850 ℃, annealing temperature of 600 ~ 700 ℃, heat working temperature of 650 ~ 850 ℃, annealing temperature of 600 ~ 700 ℃, hot working temperature of 650 ~ 850 ℃, annealing temperature of 600 ~ 700 ℃. The low temperature annealing temperature is 270 ℃.

Characteristics:

 compared with common round wire, flat wire has unique advantages in heat dissipation, welding contact area, fatigue resistance, hardness control and so on. Also has the high strength and the plasticity, can withstand the cold, the hot pressure processing, has the corrosion rupture tendency.

Role:

flat wire products are widely used in high-end instruments, electrical components, vacuum devices, resistors and semiconductor devices in the wire, lead and mechanical parts. The flat wire whose width is below 2mm fills the gap of ultra narrow band which can not be achieved by strip splitting.

Chemical composition:

Cu ：63.5～68.0         Zn：Margin:            Pb：≤0.03

Pb：≤0.03                P：≤0.01              Fe：≤0.10

Sb ：≤0.005              Bi：≤0.002

Note:≤0.3(impurities)

Specification:  brass flat wire ( 0.2～50mm)

Mechanical properties:

Tensile strength σ b / MPA: ≥ 295      Elongation δ 10: ≥ 12     Note: tensile mechanical properties of wire at room temperature Sample

size: opposite edge distance 0.5g 12.0

Brand:   H80  H85  H70  H68  H65  H62

Implementation criteria:  GB/T 3114-1994
