Professional China Unique Cocktail Shaker Set - Brass tube – Wanlutong Detail:

Quick Details

Type:Straight Copper Pipe

Application:Air Condition Or Refrigerator

Specification:OD:2mm~914mm,WT:0.2mm~120mm

Outer Diameter:2mm~914mm

Grade:C21000,C2200,C23000,C2800,C2700,C26800

Thickness:0.2mm~120mm

Length:1m,2m,3m,4m,6m,or as required, 1m,2m,3m,or as required

Cu (Min):59%

Alloy Or Not:Is Alloy

Ultimate Strength (≥ MPa):205

Elongation (≥ %):40

Wall Thickness:0.2mm~120mm

Outside Diameter:2mm~914mm

Model Number:ASTM B280,JIS H3300,AS/NZS1571

Place of Origin:Qingdao, China (Mainland)

Item:Brass Tube,Brass Pipe

Price term:Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc

Export to:Korea,Singapore,Malysia,Ukraine,Thailan

Payment:  T/T,L/C

Non-standard specifications can be customized

Packaging & Delivery

Packaging Details

Standard export package ,suit for all kinds of transport,or as required

Delivery Time

Shipped in 3 days after payment

Description:

brass tube, a non-ferrous metal pipe, is a pressed and drawn seamless pipe. Copper pipes are strong, corrosion resistant, and become the first choice for modern contractors to install piped, heated and refrigerated pipes in all residential commercial buildings. Brass pipes are the best conduit for water supply.

Features :

The brass pipe is light in weight , good in heat conductivity and high in low – temperature strength . It is commonly used in the manufacture of heat exchange equipment ( such as condenser , etc . ) . It is also used to assemble low – temperature pipelines in oxygen – making equipment . Small – diameter copper pipes are commonly used for conveying fluids with pressure ( such as lubrication system , oil pressure system , etc . ) and pressure measuring tubes used as instruments . Brass tubes are robust and corrosion resistant .

The invention mainly has the following advantages that the copper pipe has a hard texture , is not easy to corrode , and can be used in various non – copper types of environments . Compared with the brass pipe , the defects of many other pipes are obvious , such as the problems that the strength of the copper pipe is very easy to rust and the water flow becomes smaller .

Usage:

 copper pipes are often used as water pipes instead of steel pipes. They have two types: hardened tempering and softening tempering. Both tempered copper tubes are available for 20-foot straight tubes. Softened tempered copper tubes can also buy 1. 25 inch diameter 30 feet, 45 feet and 60 feet long coils. The pipe is welded to a particular fitting using a torch and solder or brazing alloy. Due to its softness, the tube bends easily to change direction, thus reducing the number of fittings and the labor required. This type of pipe is commonly used to connect the main pipe to the building instead of the lead pipe.

Specifications:

the outer diameter is less than 50mm, the length is 1000~7000mm, the outer diameter is >50mm, the length of the length is 500~6000mm. or the length of the length should be in the indefinite range, the length allowable deviation is 15mm. times the length of the sawing cutting, and the cutting quantity of each saw is 5mm..

Chemical constituents:

Brand name: Chemical composition (%)
name code name Cu Fe Pb Al Mn Sn Ni Zn total impurities
68 H68 67.0~70.0 0.10 0.03 0.5 allowance 0.3
65 H65 63.5~68.0 0.10 0.03 0.5 allowance 0.3
63 H63 62.0~65.0 0.15 0.08 0.5 allowance 0.5
62 H62 60.5~63.5 0.15 0.08 0.5 allowance 0.5

Brand number:H59  H62  H65  H68  H70  H80  H85  H90  H96

Implementation criteria:GB/T 16866-2006

Correspondence:

China

international standard

America

Japan

Britain

Germany

H59

CuZn41

C28000

C2800

CZ109

CuZn39

H62

CuZn38

C27400

C2740

CuZn40

H65

CuZn35

C26800

C2680

CZ107

CuZn36

H68

CuZn32

C26000

C2600

CuZn33

H70

CuZn30

C26000

C2600

CZ106

CuZn30

H80

CuZn20

C24000

C2400

CZ103

CuZn20

H85

CuZn15

C23000

C2300

CZ102

CuZn15

H90

C22000

C2200

CZ101

CuZn10

H96

CuZn4

C21000

C2100

CZ125

CuZn5

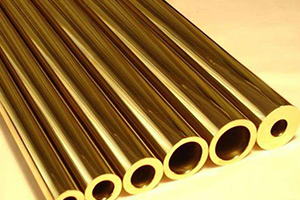

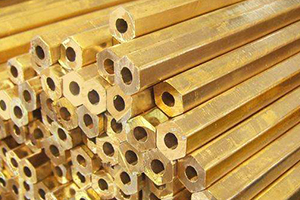

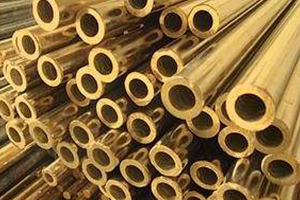

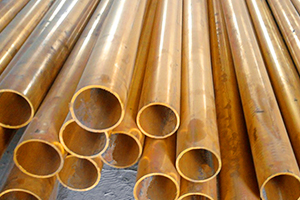

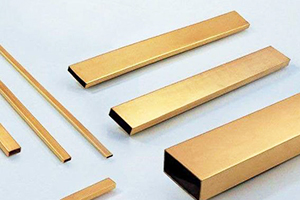

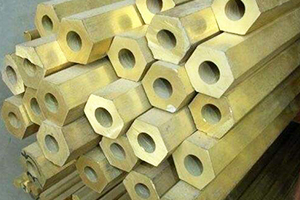

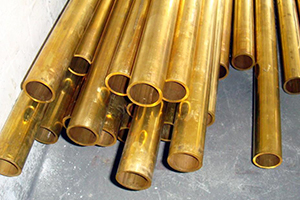

Product detail pictures:
