Short Lead Time for Hydrophilic Aluminum Coil - Copper plate – Wanlutong Detail:

Overview   Quick Details

Place of Origin:   Shandong, China (Mainland)

Brand Name:   Wanlutong

Model Number:   C10100 Cooper Tube/C10100 Cooper sheet

Application:   Industrial

Thickness:  0.1mm~300mm

Shape:   Plate, square

Width:  1~2500mm

Material:Brass, C12200 TP2 DHP

Grade:Copper Alloy

Cu (Min):99.90%

Alloy Or Not:Is Alloy

Ultimate Strength (≥ MPa):220-400

Elongation (≥ %):35%

Product Name:copper plate sizes

Item:C10100 Cooper Tube/C10100 Cooper sheet

Standard:ASTM B42/68/88/280/111/640/447

Export to:Singapore

Surface:Bright

Price Term:CIF CFR FOB Ex-Work

Temper:Soft Annealed

Package:Wooden Case

Non-standard specifications can be customized

Packaging & Delivery

Packaging Details

export package

Delivery Time

Shipped in 15 days after payment

copper strip sheet 0.1mm thick

item:Copper plate,copper strip ,brass plate,brass sheet



Specification

Standard Certificate
GB/T 5231-2001,GB/T 18813-2002 CQC, RoHS, ISO9001,SGS



Grade Cu+Ag Bi Sb As Fe Pb S
c1100 99.90% 0.001% 0.002% 0.002% 0.005% 0.005% 0.005%



Temper Thickness(mm) Width(mm) Cu(min) Electrical conductivity(20℃)(IACS) Resistivity{Ω(mm)^2/m} Side camber(mm/m) Edge burr(mm) Vickers hardness
soft 0.2-3.0 1-1020 99.90% ≥98.20% ≤0.017540 ≤2 ≤0.02 45-65

Characteristic:

The brass strip has high mechanical properties and high electrical conductivity, thermal conductivity and processability inherent in copper alloy, so it is widely used in daily electrical appliances, hardware, electronic communication, machine manufacturing, automobile, Construction decoration and clothing and other industries, these areas in the domestic brass strip market has a greater demand. On the other hand, with the rapid development of electronics and electrical industry, the demand for connector materials based on brass tape also increases rapidly.

Copper plate with unique excellent performance, is the electrical industry manufacturing circuit breaker, contact conductive plate, low voltage air switch conductive accessories and other ideal replacement materials. Compared with pure copper plate and copper ferroalloy plate, the tensile strength is increased 10.4%, the    hardness is increased 3%, the conductivity of copper plate is increased 4.5%, the grain size is 2.8% higher than that of imported alloy plate, and the wear resistance is obviously improved. To reach the international advanced level. Using this plate to manufacture electrical accessories can improve the quality, prolong the service life of products and ensure public safety. The elongation of copper is good, and the waterproof board is not easy to be damaged under compression, shear and uneven settlement. Copper plate is generally divided into thin plate and medium thick plate. The thickness of thin plate is 0.1mm-3.0mm and the thickness of plate is 3.0mm-200mmm. Copper sheet is a high stability, low maintenance roof and curtain wall materials, environmental protection, safe use, easy to process and highly corrosion resistance.

1) the yield strength of copper sheet is inversely proportional to the elongation, and the hardness of the processed bending copper plate increases very high, but can be reduced by heat treatment.

2) of all the metal materials used in buildings, copper has the best extensibility and great advantages in building modeling.

3) copper sheet is not limited by processing temperature, it is brittle at low temperature and can be welded by oxygen blowing at high melting point.

4) Fire proof, non-combustible material.

act on

1) Construction machinery equipment: loader bulldozer excavator bucket plate, side edge plate, bucket bottom plate, blade, thought plate.

2) Loading and unloading machinery equipment: unloading mill chain plate, hopper lining plate, grab blade plate, medium automatic dumper bucket plate

3)Construction machinery and equipment: Cement pusher tooth plate, concrete mixer lining board, mixing building lining board, dust collector lining board.

4) Metallurgical machinery: iron ore sintering conveyer elbows, iron ore sintering machine linings, scraper linings

5) Mining machinery and equipment: ore, stone crusher lining, blade.

6) other mechanical equipment: sand mill cylinder, blade, various port machinery wear resistant parts

7) Thermal power equipment: coal mill lining, coal hopper, coal distribution pipe, coal distributor grid, unloading equipment liner

8) shot blasting machinery: shot blasting machine lining

the name of a shop

T2,TU1,TU2,TP1,TP2,H59,H62,H65,H68,H70,H80,H85,H90,H96,QBe2,QBe1.9,QBe1.7。

international relation

china

international standard

America

Japan

Britain

Germany

H59

CuZn41

C28000

C2800

CZ109

CuZn39

H62

CuZn38

C27400

C2740

CuZn40

H65

CuZn35

C26800

C2680

CZ107

CuZn36

H68

CuZn32

C26000

C2600

CuZn33

H70

CuZn30

C26000

C2600

CZ106

CuZn30

H80

CuZn20

C24000

C2400

CZ103

CuZn20

H85

CuZn15

C23000

C2300

CZ102

CuZn15

H90

C22000

C2200

CZ101

CuZn10

H96

CuZn4

C21000

C2100

CZ125

CuZn5

international relation

china

international standard

America

Japan

Britain

Germany

T2

Cu-RTP

C11000

C1100

C101

R-Cu57

TU1

Cu-OF

C10200

C1020

C110

OF-Cu

TU2

Cu-OF

C10300

C1020

C103

OF-Cu

TP1

Cu-DLP

C12000

C1201

SW-Cu

TP2

Cu-DHP

C12200

C1220

C106

SF-Cu

international relation

china

Russia

America

Britain

France

Germany

Japan

QBe2

БPБHT2

C17200

C17300

CuBe2

CuBe2

C1720

QBe1.9

БPБHT1-9

C17200

CuBe1.9

QBe1.7

БPБHT1-7

C17000

CB101

CuBe1.7

CuBe1.7

C1700


Product detail pictures:

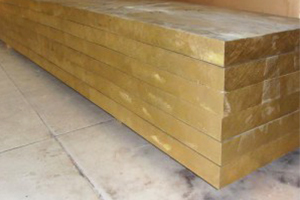

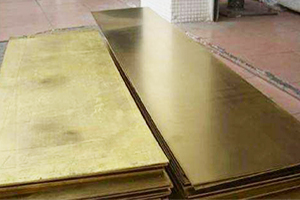

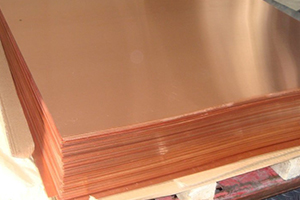

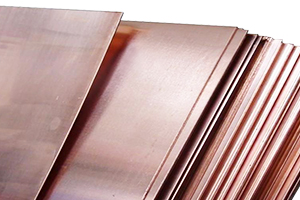

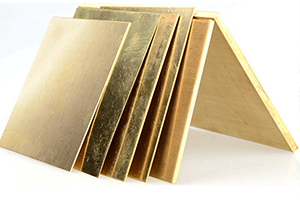

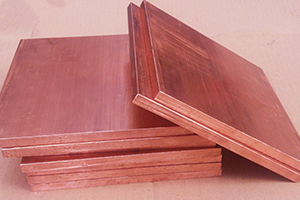

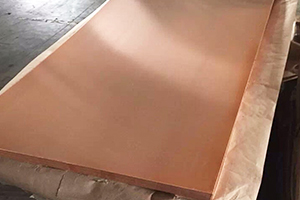

Short Lead Time for Hydrophilic Aluminum Coil - Copper plate – Wanlutong detail pictures
